Paramerter Generation

form json​

{
    "name": "count",
    "label": "count",
    "db": true,
    "columns":["control","treatment"],
    "rules": [
    {
        "required": true,
        "message": "This field cannot be empty!"
    }
    ],
    "type": "CollectedGroupSelectSampleButton",
    "group": "group_field"
}

react dom​

<>
    <Form.Item label={`${label} File`} name={[name, "file"]} rules={rules}>
        <Select options={collectFiles} ></Select>
    </Form.Item>
    {(columns && Array.isArray(columns)) && columns.map((item: any, index: any) => (
        <div key={index}>
            <Form.Item label={`${item} Columns`} name={[name, item]} rules={rules}>
                <GroupSelectSample sampleGrouped={sampleGrouped} sampleGroup={options} ></GroupSelectSample>
            </Form.Item>
            <Flex gap="small">
                {item}
                <Form.Item label={item} name={[name, "group",`${item}`]} noStyle >
                    <GroupSelectButton sampleGrouped={sampleGrouped}  field={[name, item]}></GroupSelectButton>
                </Form.Item>
                <Form.Item name={[name,"group_name", `${item}`]} >
                    <Input size="small" placeholder="Optional group name"></Input>
                </Form.Item>
                <Form.Item name={[name, "color",`${item}`]} >
                    <ColorPickerComp projParameter={projParameter} />
                </Form.Item>
            </Flex>
        </div>
    ))}
</>

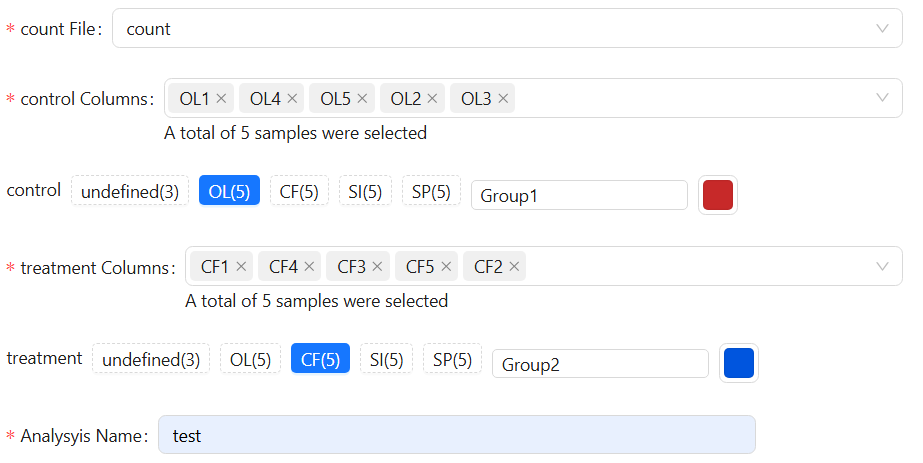

ui​

CollectedGroupSelectSampleButton

request params​

{

  "count": {
    "file": 6492,
    "control": [
      "OL1",
      "OL4",
      "OL5",
      "OL2",
      "OL3"
    ],
    "group": {
      "control": [
        "OL"
      ],
      "treatment": [
        "CF"
      ]
    },
    "group_name": {
      "control": "Group1",
      "treatment": "Group2"
    },
    "color": {
      "control": "#c72929",
      "treatment": "#0055de"
    },
    "treatment": [
      "CF1",
      "CF4",
      "CF3",
      "CF5",
      "CF2"
    ]
  }
}

parse params​

{
  "group_field": "group",
  "count": {
    "id": 6492,
    "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
    "file_name": "count",
    "component_id": "96a34143-2cde-4c34-813f-e0c88454cd78",
    "content": "/opt/brave_prod/workspace/analysis/9a6af4fb-0af6-4752-af79-9adec161e7c2/457113ad-cda6-4b8f-8710-13e7a87a87c2/f2eeb170-ee62-43fc-acc0-cf4c66c66810/output/count.tsv",
    "content_type": "json",
    "analysis_id": "f2eeb170-ee62-43fc-acc0-cf4c66c66810",
    "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
    "analysis_type": "upstream_analysis",
    "analysis_result_hash": "d312bd1d9c8fc932e1f63ebdc6a49c3f",
    "analysis_name": "Combine Gene",
    "component_name": "Combine Gene Count",
    "file_type": "collected",
    "project_name": "leipu",
    "form_type": "CollectedGroupSelectSampleButton",
    "control": [
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "OL1",
        "group": "OL",
        "sample_id": "f4bd27d6-a206-4aa7-837b-5450a976aaad",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "OL1",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "OL",
        "re_groups_name": "Group1"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "OL4",
        "group": "OL",
        "sample_id": "5c6bce37-b5ea-418b-90a3-bdfcb763aa7a",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "OL4",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "OL",
        "re_groups_name": "Group1"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "OL5",
        "group": "OL",
        "sample_id": "751ea228-f2dc-4fef-9363-40d62c26943d",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "OL5",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "OL",
        "re_groups_name": "Group1"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "OL2",
        "group": "OL",
        "sample_id": "7bc7bc37-18da-48b2-9b14-30f6e894a087",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "OL2",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "OL",
        "re_groups_name": "Group1"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "OL3",
        "group": "OL",
        "sample_id": "332ec1c4-b0c6-41af-90b3-79997ae5de00",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "OL3",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "OL",
        "re_groups_name": "Group1"
      }
    ],
    "treatment": [
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "CF1",
        "group": "CF",
        "sample_id": "8d302e23-e50e-4d23-b1f7-4dc4328a3075",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "CF1",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "CF",
        "re_groups_name": "Group2"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "CF4",
        "group": "CF",
        "sample_id": "4f4fee2b-c7df-47b5-b177-0f31f7c54701",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "CF4",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "CF",
        "re_groups_name": "Group2"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "CF3",
        "group": "CF",
        "sample_id": "1d65201b-c8a1-43e6-9fbc-3054aa416499",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "CF3",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "CF",
        "re_groups_name": "Group2"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "CF5",
        "group": "CF",
        "sample_id": "5e7df75c-ab7f-4ba5-9f70-12e27a03c52b",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "CF5",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "CF",
        "re_groups_name": "Group2"
      },
      {
        "id": 6492,
        "analysis_result_id": "07ebc87a-6796-421c-95bb-fe21557f964b",
        "columns_name": "CF2",
        "group": "CF",
        "sample_id": "cd10a228-54b1-4285-977b-e9b86372464a",
        "project": "9a6af4fb-0af6-4752-af79-9adec161e7c2",
        "sample_name": "CF2",
        "sample_group": null,
        "sample_source": null,
        "selcted_group_name": "CF",
        "re_groups_name": "Group2"
      }
    ]
  },
  "colors": {
    "count": {
      "control": "#c72929",
      "treatment": "#0055de"
    }
  },
  "groups_name": {
    "count": {
      "control": "OL",
      "treatment": "CF"
    }
  },
  "re_groups_name": {
    "count": {
      "control": "Group1",
      "treatment": "Group2"
    }
  },
  "groups": [
    "count"
  ]
}

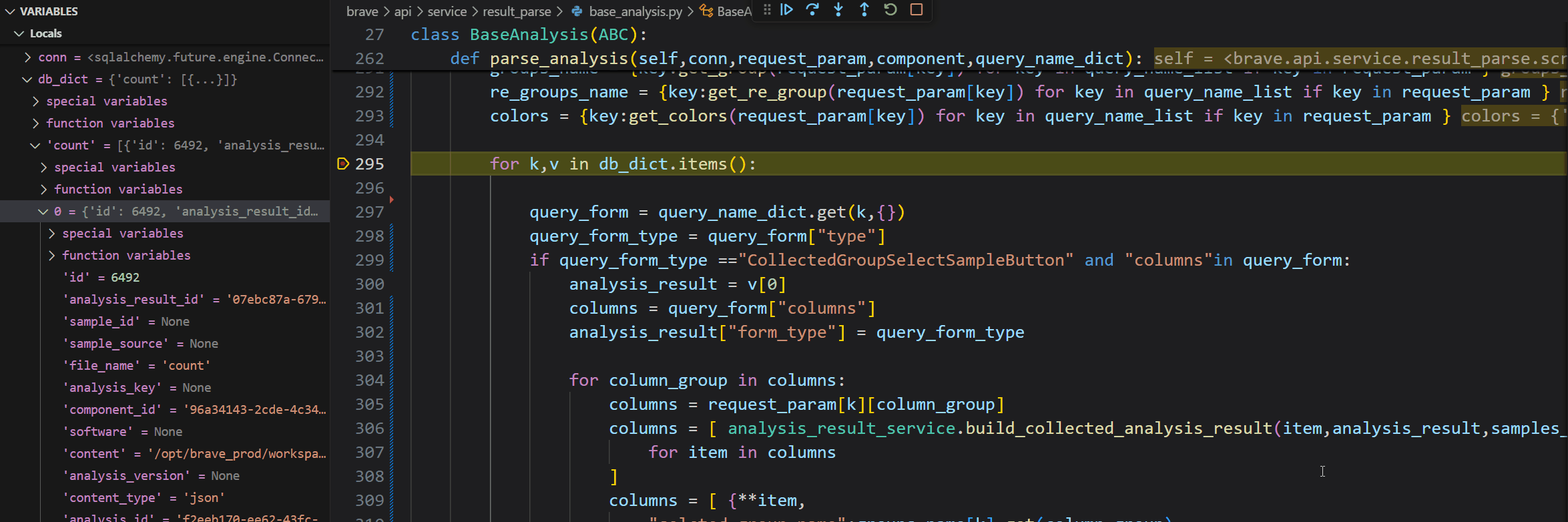

python parse​
